Setting up VNC repeater on Linux

You may be aware of how team viewer works it can almost work behind any sort of or . The secret behind it is that both client and server do not contact each other directly but via a repeater that is owned by the company and allows the client and server to initiate a reverse connection to the repeater. If you are worried not to have a third party between your sessions I will explain on this blog how to setup your own repeater on Linux as for windows its straight forward. The software which is used to achieve this is UltraVNC which is free and open source the package contains client, server and repeater.

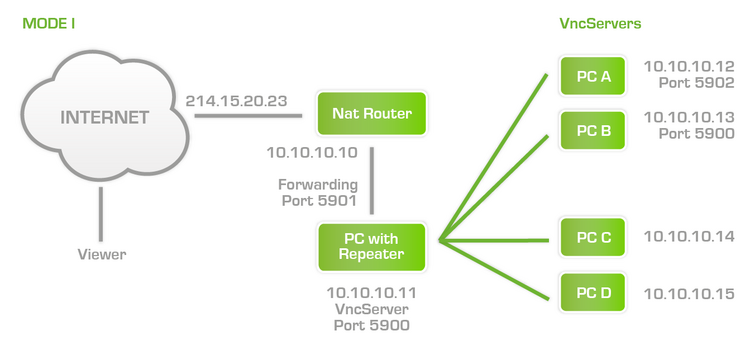

vnc repeater setup

vnc repeater setup



Repeater setup on Debian node:



# Make sure you have a static IP on your node

# Update your node:

apt-get update
apt-get upgrade

# Get some packages:

apt-get install nano x-window-system-core x-window-system libxtst6 psmisc build-essential
apt-get install libx11-6 libx11-dev

# Download the repeater source into /usr/local/src

cd /usr/local/src
wget http://www.wisdomsoftware.gr/download/uvncrep017-ws.tar.gz

# Extract the source file

gunzip uvncrep017-ws.tar.gz
tar -xvf uvncrep017-ws.tar

# Install

cd uvncrep017-ws
make; make install;

# Add a user for the service you can change this on config file

useradd uvncrep

# Edit configuration to suit your needs for me I only changed ports + allowedmodes = 2

nano /etc/uvnc/uvncrepeater.ini

# Start the service

/etc/init.d/uvncrepeater start
# or
service uvncrepeater start

# Stop the service

/etc/init.d/uvncrepeater stop

# To moniter the logs:

tail -f /var/log/uvncrepeater.log

# To test your server:

winvnc.exe -id:424 -repeater IP_Number::Repeater_Port -run

# To encrypt the traffic change the following settings on ultravnc.ini and make sure you generate your key rc4.key

UseDSMPlugin=1
DSMPlugin=MSRC4Plugin_for_sc.dsm

# To run it as service change the following settings on ultravnc.ini

service_commandline=-autoreconnect -id:Your_custom-ID_Number -connect IP_Number::Repeater_Port



Download UltraVNC
